Welding guns
Servo spot gun C guns
Series Features
-
01
The optimal pressure can be set for each welding spot
-
02
Their soft touch hardly ever leave dents, and produce little noise
-
03
No exhaust air comes out, resulting in no air contamination
-
04
Synchronous operation is possible wih robots
-
05
Wide range of variations (S type, KR type, light weight type) to accommodate various applications
Series Product Details
![S type C gun](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series1-product01.jpg)
Features
- Universal global standard model
- Wide range of variations through standardization
- Compact and lightweight is achieved by optimal component layout
- Dust-proof and drip-proof structure improves durability
Specification table
Power source | Maximum short circuit current (A) |
Equivalent continuous current (A) |
Maximum electrode force (kN) |
Dimensions (mm) | Stroke length (mm) | Weight (kg) |
---|---|---|---|---|---|---|
Single-phase AC | 15,000 | 4,110 | 6.0 | 70~400 | 100~200 | 101~130 |
DC inverter | 15,000 | 4,110 | 6.0 | 70~400 | 100~200 | 84~103 |
![KR type C gun](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series1-product02.png)
Features

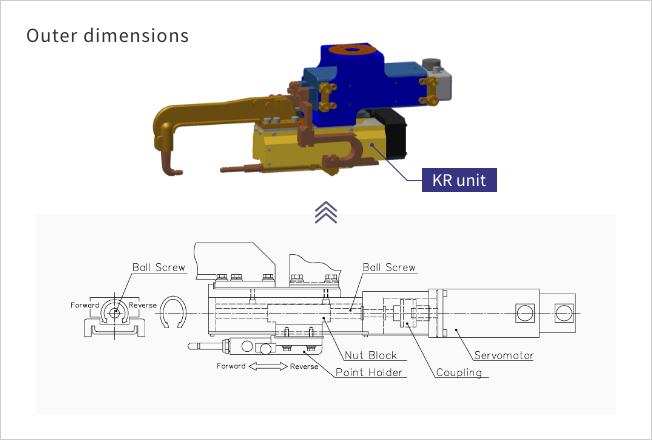

- Our unique high rigidity C gun, which employs a KR unit in the drive section
- High rigidity of KR unit allows for special shapes with large offset amount
- The total length can be shortened because the point holder is attached to the lower part of the KR unit.
![](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series1-product02_2-en.png)
Options
The gun with large ams of 1,000mm dimensions can be made. |
Specification table
Power source | Maximum short circuit current (A) |
Equivalent continuous current (A) |
Maximum electrode force (kN) |
Dimensions (mm) | Stroke length (mm) | Weight (kg) |
---|---|---|---|---|---|---|
Single-phase AC | 15,000 | 4,110 | 4.0, 6.0 | 70~500 | 50~400 | 105~175 |
DC inverter | 15,000 | 4,110 | 4.0, 6.0 | 70~500 | 50~400 | 90~150 |
![Lightweight compact C gun](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series1-product03.jpg)
Features
- 35 to 50% lighter in mass
- 40 to 50% more compact in volume
- Robots can be reduced in size by making them lighter in weight
- The cylce time can be shortened by high-speed operation with lighter gun.
- Flexibility of motion is expanded by avoiding interference with a slim body
Options
The gun with large ams of 1,000mm dimensions can be made. |
Long stroke length of 400mm is also available. |
Specification table
Power source | Maximum short circuit current (A) |
Equivalent continuous current (A) |
Maximum electrode force (kN) |
Dimensions (mm) | Stroke length (mm) | Weight (kg) |
---|---|---|---|---|---|---|
DC inverter | 15,000 | 4,110 | 6.0 | 70~500 | 50~250 | 51~71 |
![C gun for aluminum welding](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series1-product04.jpeg)

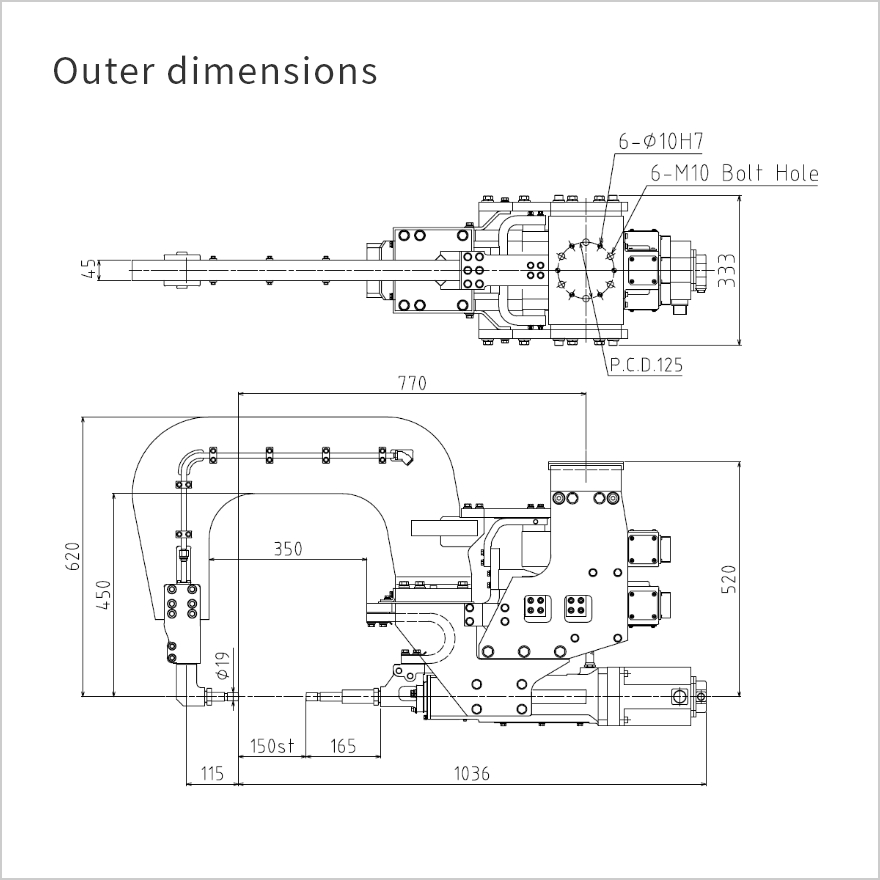

Features
- High-pressure, high-current gun suitable for aluminum spot welding
- High electrode press (max: 12kN) also available for forge press
- Three inverter transformers are connected in parallel to achieve large current (max. 50,000A).
- To be mounted to the robot with 200kg payload at wrist by lighter body
- Slim body symmetrical (transformer or motor centrally located)
![](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series1-product04_2-en.jpg)
Specification table
Power source | Maximum short circuit current (A) |
Equivalent continuous current (A) |
Maximum electrode force (kN) |
Dimensions (mm) | Stroke length (mm) | Weight (kg) |
---|---|---|---|---|---|---|
DC inverter | 50,000 | 11,180 | 12.0 | 450 | 150 | 160 |
Series Features
-
01
The optimal pressure can be set for each welding spot
-
02
Their soft touch hardly ever leave dents, and produce little noise
-
03
Exhaust air does not come out, so air does not get dirty.
-
04
Cycle time can be shortened by synchronized operation with the robot.
-
05
Various variations (reduction gear type, KR direct acting type, light weight type) are available for various applications
Series Product Details
![Reduction gear type X gun](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series2-product01.jpeg)
Features
- DGT's proprietary high-rigidity gun with a reduction gear in the spindle
- Suppressing core misalignment and backlash
- Maintenance-free without bushing or thrust washer (greasing once every 5 years)
- Slim and compact gun body
- Reduction of spare parts by standardization of parts
- Dust-proof and drip-proof structure improves durability
Specification table
Power source | Maximum short circuit current (A) |
Equivalent continuous current (A) |
Maximum electrode force (kN) |
Dimensions (mm) | Stroke length (mm) | Weight (kg) |
---|---|---|---|---|---|---|
Single-phase AC | 15,000 | 4,110 | 5.0 | 290~350 | 150~170 | 125~144 |
DC inverter | 15,000 | 4,110 | 5.0 | 290~350 | 150~170 | 103~117 |
![KR Type Direct acting X gun](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series2-product02.png)
Features

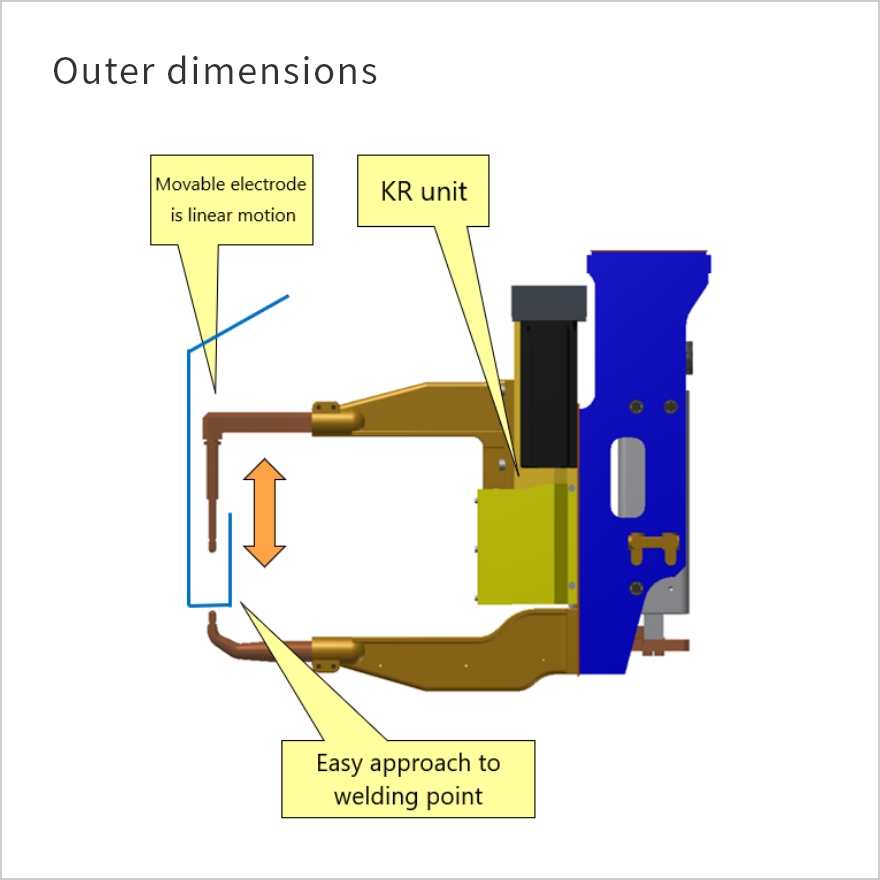

- Our unique high rigidity X-gun, which employs a KR unit in the drive section
- Hight rididity of KR unit makes it possible to bigger throat opening and replace with X gun
- Approach to the welding point is easy because the motion to the welding point is linear rather than rotary.
- Linear motion prevents core misalignment due to electrode wear
![](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series2-product02_2-en.jpg)
Specification table
Power source | Maximum short circuit current (A) |
Equivalent continuous current (A) |
Maximum electrode force (kN) |
Dimensions (mm) | Stroke length (mm) | Weight (kg) |
---|---|---|---|---|---|---|
Single-phase AC | 15,000 | 4,110 | 4.0, 6.0 | 300~600 | 100~400 | 130~190 |
DC inverter | 15,000 | 4,110 | 4.0, 6.0 | 300~600 | 100~400 | 115~175 |
![Lightweight compact X-gun](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series2-product03.jpg)
Features
- 35 to 50% lighter in mass
- 40 to 50% more compact in volume
- Robots can be reduced in size by making them lighter in weight
- The cylce time can be shortened by high-speed operation with lighter gun.
- Flexibility of motion is expanded by avoiding interference with a slim body

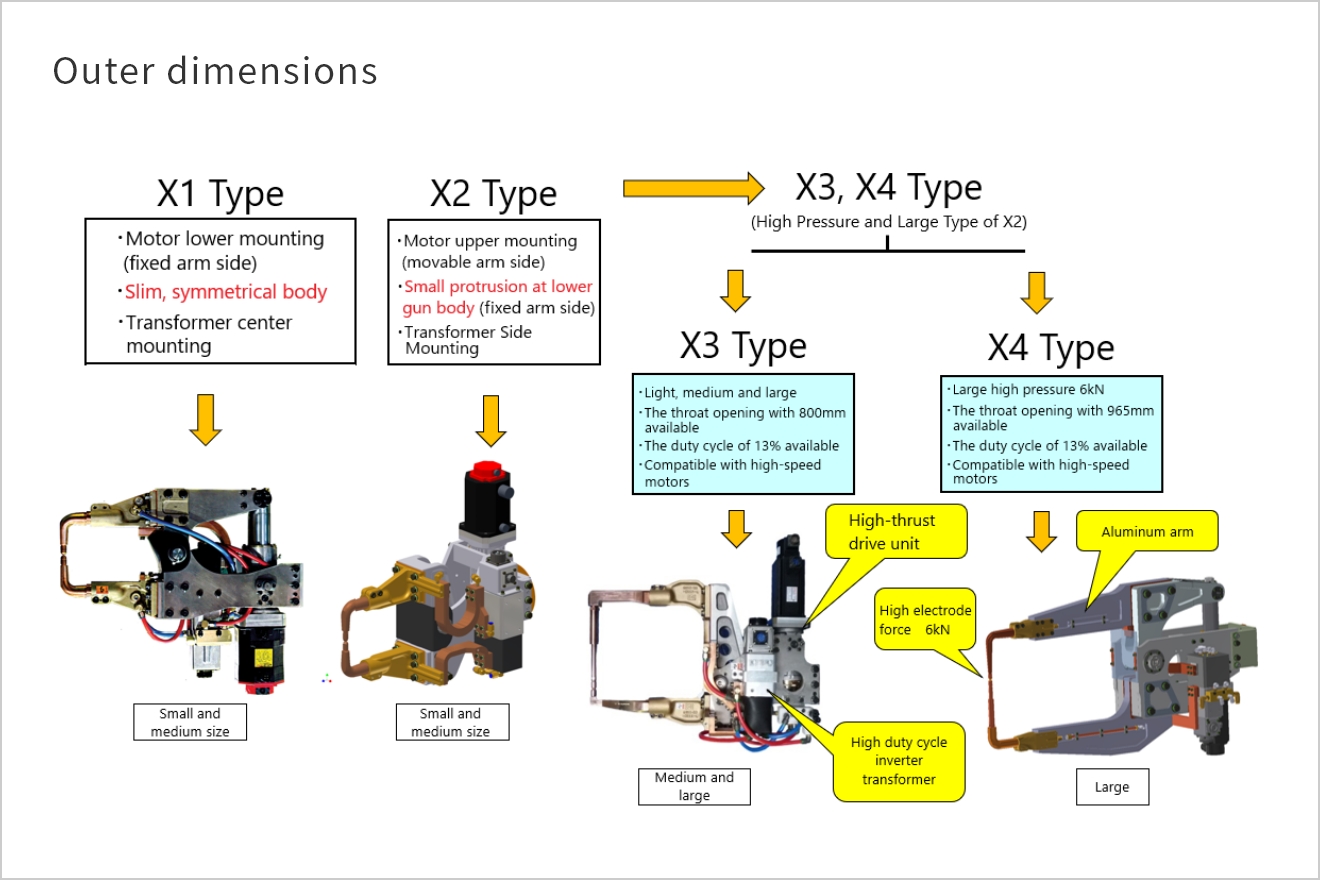

- X1, X2, X3 and X4 are available in a wide variety of shapes and dimensions.
![](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series2-product04_2-en.jpg)
Specification table
Type | Power source | Maximum short circuit current (A) |
Equivalent continuous current (A) |
Maximum electrode force (kN) |
Dimensions (mm) | Stroke length (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|
X1 (Small and medium size) |
DC inverter | 15,000 | 4,110 | 4.0~6.0 | 260~410 | 94~141 | 62~72 |
X2 (Small and medium size) |
DC inverter | 15,000 | 4,110 | 4.0~6.0 | 260~410 | 101~152 | 65~73 |
X3 (Medium and large size) |
DC inverter | 18,000 | 5,728 | 3.5~7.0 | 350~800 | 145~310 | 66~90 |
X4 (Large and high pressure) |
DC inverter | 18,000 | 5,728 | 6.0 | 600~965 | 225~240 | 135~165 |
![High pressure light weight reduction gear type X gun](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series2-product04.jpg)
Features
- Compatible with high pressurization (max. 7kN) by adopting a high torque type reduction gear
- Aluminum material is used for main parts, and compactness and weight reduction are realized by optimizing parts layout.
- Equipped with high duty cycle inverter transformer (16,000A 13%)
- Suppressing core misalignment and backlash
- Maintenance-free without bushing or thrust washer (greasing once every 5 years)
- Dust-proof and drip-proof structure improves durability
Options
The throat opening with 900mm available |
Specification table
Power source | Maximum short circuit current (A) |
Equivalent continuous current (A) |
Maximum electrode force (kN) |
Dimensions (mm) | Stroke length (mm) |
Weight (kg) |
---|---|---|---|---|---|---|
DC inverter | 18,000 | 5,728 | 4.8~7 | 250~500 | 140~240 | 88~97 |
Series Features
-
01
Available in a wide variety of welding parts
-
02
Excellent operability reduces operator burden
Series Product Details
![Portable gun](https://www.dengenshatoa.co.jp/wordpress/wp-content/uploads/welding-guns-series3-product01.jpg)
Features
- Available in a wide variety of welding parts
- Excellent operability reduces operator burden
